Submission Architectural Drawings | DHA, CDA, LDA & International Standards

in 3 days, with 3 revisions

You must sign in to purchase

$100 START DISCUSSION

Service Description

Get your complete submission drawing set prepared according to authority bylaws and standards — ready for approval and construction.

I provide professionally drafted architectural submission drawings that meet local and international requirements, ensuring accuracy, clarity, and compliance.

Whether it’s a Marla/Kanal residential house in Pakistan or an international project, I’ll deliver a full set of drawings ready for submission.

?? As per DHA / CDA / LDA / RDA Rules
?? AutoCAD 2025 | Scaled & Labeled
?? Fast Delivery & Professional Layout

Technology Used

AutoCAD 2025 for precise drafting

Revit Architecture (optional) for BIM coordination

PDF + DWG formats delivered

Drawings compliant with local authority and international standards

Frequently Asked Questions

Q1: What are submission drawings?
A: Submission drawings are architectural plans required by city or housing authorities for building approval — including layout, elevation, sections, and site plan.

Q2: What authorities’ standards do you follow?
A: I design as per DHA, CDA, LDA, RDA, Bahria Town, and other local development authorities, as well as international codes (IBC / UK / Gulf).

Q3: What do I need to start?
A: Please share your approved floor plan (PDF/DWG), plot location, and society name or city.

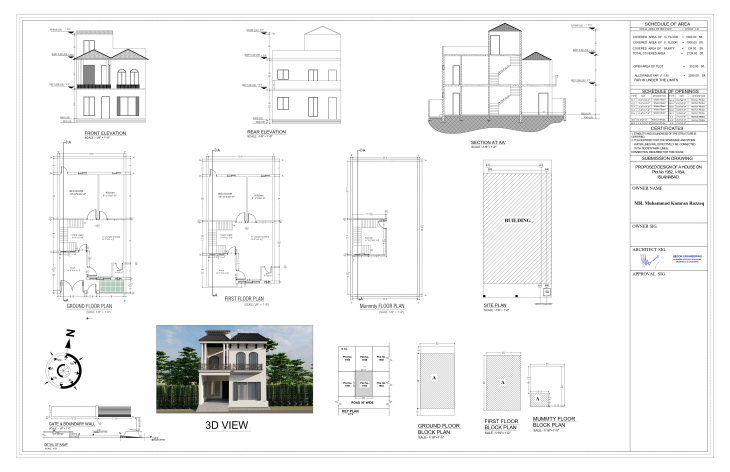

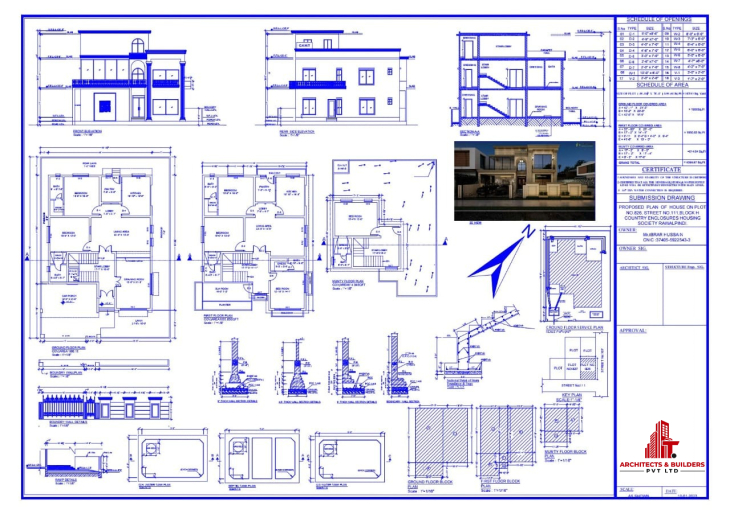

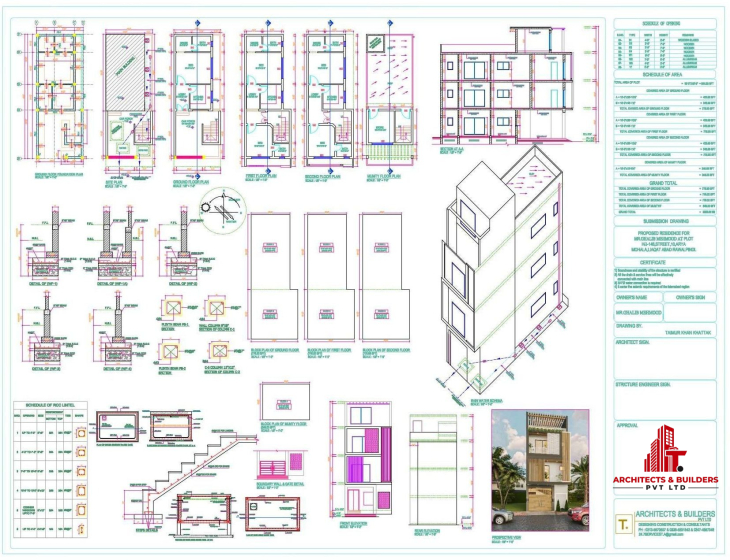

Q4: What drawings will I receive?
A: You’ll receive a complete set including:

Site Plan

Floor Plans (All Levels)

Elevations & Sections

Roof & Boundary Wall Plan

Submission Title Sheet & Notes

Q5: Do you provide structure or MEP drawings too?
A: Yes, structural and MEP drawings can be provided as add-ons for full submission packages.
